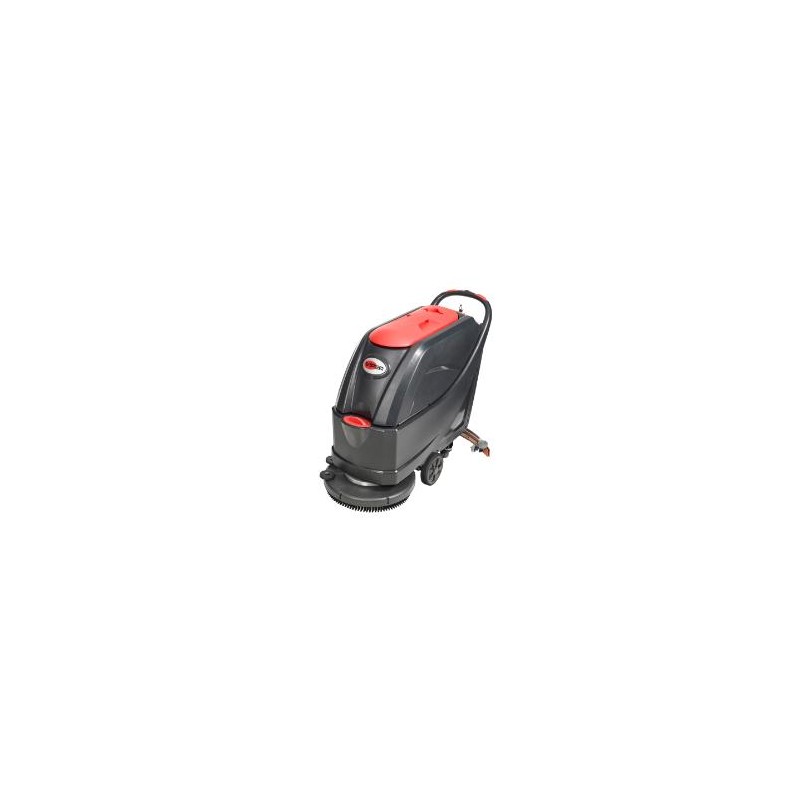

AS5160T-EU SCRUBBER 20IN 60L24V TRACTION

Product no: 50000403

Designed to deliver continuous high-performance cleaning



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

The Viper AS5160 is a highly productive walk-behind scrubber dryer with high battery endurance and tank capacity to clean for hours. Being easy and comfortable to use with their ergonomic design, these robust machines are ready for an in-depth performance on indoor surfaces.

Ideal for cleaning in hotels and restaurants, bus and train stations, factories, supermarkets, shopping malls, hospitals, schools, and other institutions.

With a working width of 51 cm and a powerful 450 W brush motor, these machines will get the job done with both speed and ease. Especially if you go for the model AS5160 T – for Traction – equipped with a 150 W drive motor bringing the scrubber dryer forward.

The machines are well-balanced and easy to maneuver thanks to their big wheels and strong casters. Hour meter and water level indicator will keep you updated, and the speed reducing gear drive system of the Traction version ensure smooth operation with a minimum of effort.

For intensive cleaning or maintaining large coated floor areas the AS5160TO with orbital scrub deck ensures multidirectional cleaning performance with low solution and detergent consumption and the square deck gives easy to access corners.

  • Orbital version saving water and detergent equipped with traction motor and automatic raise and lowering of the scrub deck
  • AS5160T - Traction-model: 150W drive motor
  • Easy to maneuver and transport: Big wheels and strong caters, making the machine well-balanced
  • Easy and convenient operation: 2 pcs safety switches
  • Control panel with intuitive display and buttons
  • Productive: Working width 51 cm
  • Brush and pad driver can be installed/un-installed automatically
  • Hour meter: Check how many hours the machine has been running
  • Water level indicator with volume visible on the tank
  • High capacity for increased productivity: 61-liter water tank/ 61-liter recovery tank
  • Robust and solid: Steady chassis system and rotationally molded tanks
  • Reliable: Heavy duty 79 cm aluminum squeegee
  • Accessories: Brush, pad holder, batteries 12V x2 and onboard charger
  • Optional brush skirt kit prevents the machine from splashing water splashing water

Videos

Accessories

Pad Holder

PAD HOLDER 508MM 20 VF90416 (Available for this model, but not included in the purchase)

PAD HOLDER RETAINER 508MM 20 VF90454 (Available for this model, but not included in the purchase)

Disc Brush

BRUSH DISC 510MM 20 PPL VF90417

Squeegee Blade

BLADE SQUEEGEE FRONT GUM RUBBER 790MM 31 VF90119

BLADE SQUEEGEE FRONT PU 790MM 31 VF90148 (Available for this model, but not included in the purchase)

BLADE SQUEEGEE REAR GUM RUBBER 790MM 31 VF90120

BLADE SQUEEGEE REAR PU 790MM 31 VF90149 (Available for this model, but not included in the purchase)

Battery

BATT.12V-87AH AGM MONOBLOC 1464853000

On-Board Charger

CHARGER 24V 10A VR27041

Squeegee, Blade, Skirt and Splash Guard

SPLASHGUARD KIT 510MM 20 VS10151 (Available for this model, but not included in the purchase)

Data sheet

Shipping weight
183
Dimensions
1370x600x1220
Brush Speed
150
Sound pressure level
69
Solution/recovery tank
61/61L
Brush pressure
23
Max. climbing rate
2%
Brush/pad diameter (mm)
510
Net weight (kg)
23
Squeegee width (mm)
790
Vacuum motor power (W)
350
Brush motor (W)
450
Battery compartment size (L x W x H) (mm)
350x350x300
Water Flow
0-2.4L/min
Vacuum (mm H2O)
1200
Battery type
2x12V 100Ah/C20 AGM
Gross vehicle weight (gvw) (kg)
222.8
Battery voltage (V)
24
Working speed (km/h)
0-4.5
Traction motor power (W)
150
