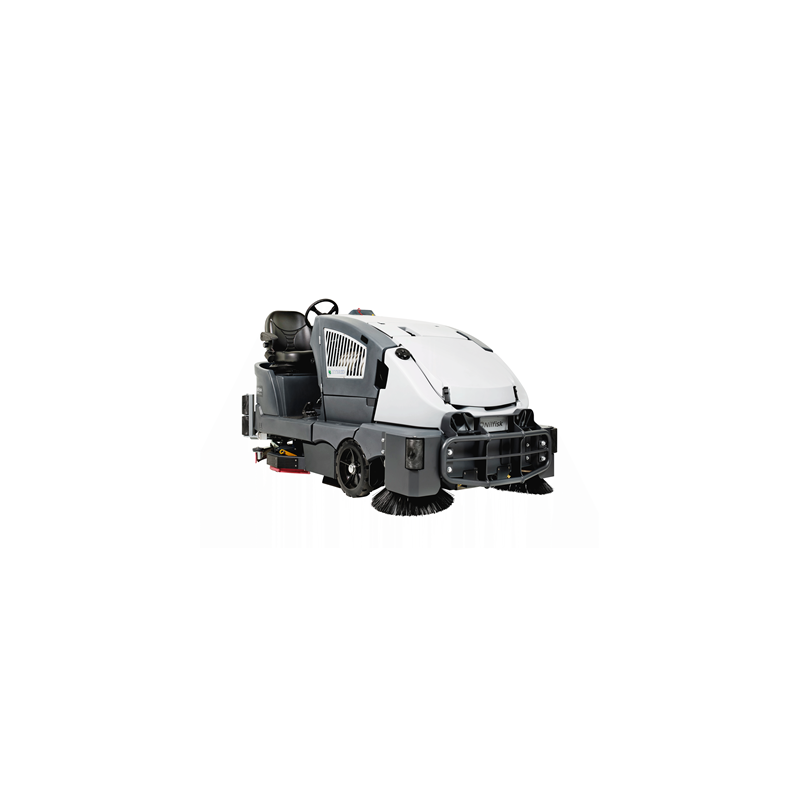

CS7010 1200LPG HYBRID

Hybrid and ePower combi machines



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

GREENER, CLEANER, SMARTER. CS7010 reinvents an entire class of equipment by reducing total cost of ownership, including operation, labour and maintenance, while effectively increasing fuel economy and runtime efficiency. Now the most economical solution is also the most ecological.

Available in three models, LPG-Hybrid, Diesel-Hybrid and ePower Battery. CS7010 delivers unparalleled performance, while replacing power-hungry, high-maintenance hydraulic system with efficient, state-of-the-art Electric Drive Technology. Whichever model you choose, the CS7010 delivers the lowest cost of ownership and the most suitable cleaning solution in its class. Dedicated sweeping and scrubbing functions with one-pass cleaning keep debris dry without introducing scrub solution into the debris hopper. This provides operators and equipment owners with increased productivity and reduced maintenance. Lower total cost of ownership. CS7010 dispels the complexity and high maintenance of hydraulic systems that power conventional combination machines. We've eliminated large hydraulic reservoirs, filters and oil coolers as well of the leak-prone hydraulic hoses, pumps, motors and valves. Hydraulic drives have been replaced with an intelligent system of electronically controlled, low maintenance electric drives. This technology shift will save you a lot of money in reduced maintenance costs.

  • ClearView™ sightlines and automatic speed reduction in turns for safer operation
  • Tools-free tilt-out/lift-off recovery tank with integrated SmartFlow™
  • Available with patented  DustGuard™ airborne dust suppression technology
  • High-capacity 285 litre front  dry sweeper debris hopper with high-lift system
  • Standard dual side brooms sweep entire squeegee path to minimise fouling
  • Hybrid combination machine.
  • Fuel less consumption, less. high running time on battery variant.
  • Retractable offset deck and breakaway squeegee.
  • Generation fitration system, variable filter shaking
  • OneTouch™, MaxAccess, NoTools™. More efficient service, extreme commonality among platforms.
  • Hybrid techonolgy and Ecoflex™
  • Heated water, High pressure washer
  • Model No
    56511821
  • Engine type
    Kubota
  • Power source
    LPG Hybrid
  • Motor power source
    WG972, 3 cyl, 30 Hp (22 kW)
  • Scrubbing width (mm)
    1245
  • Sweeping width (mm)
    1540
  • Max. speed (km/h)
    8.9
  • Max. climbing rate (%)
    17.6
  • Productivity 2 side brooms theoretical/actual (m²/h)
  • Productivity rate theoretical/ actual (m²/h)
    11080/7756
  • Solution/recovery tank (l)
    284
  • Water flow (l/min.)
    3.8-11.36
  • Squeegee width (mm)
    1350
  • Brush pressure (kg)
    90-127-181
  • Brush size (mm)
    430
  • Brushes/pads qty.
    3
  • Hopper volume (l)
    198
  • Main filter area (m²)
    10.7
  • Main broom (mm)
    900x310
  • Side broom diameter (mm)
    381
  • Sound pressure level (dB(A))
    82
  • Sound level lpa/lwa (dB(A))
    103
  • Min. turn-around aisle width (cm)
    259/264
  • Length x width x height (mm)
    2620x1650x1500
  • Gross weight (gvw) (kg)
    2121
  • Net weight (kg)
    1649
  • Protection class / IP protection
    IPX4
  • DustGuard™ Tank Capacity (optional)
    110
  • Hybrid engine
    Included
  • Adjustable steering and seat
    Included
  • One-Touch™ control panel
    Included
  • Diagnostic system
    Included
  • Ergonomic driver seat
    Included
  • Scrubbing and sweeping
    Included
  • Automatic speed reduction
    Included
  • Back up warning alarm
    Included
  • Horn
    Included
  • Headlights
    Included
  • Disc deck: 3 brushes
    Included
  • Offset pivoting deck
    Included
  • Debris tray
    Included
  • Tip out recovery tank
    Included
  • Break away Squeegee
    Included
  • Automatic squeegee lift in reverse
    Included
  • Ecoflex prepared
    Included
  • Two side brooms
    Included
  • Direct throw sweeping
    Included
  • Variable high dump system
    Included
  • Hopper safety arm assist
    Included
  • Multi-frequency filter shaker
    Included
  • Wet sweep by-pass
    Included
CS7010 1200LPG HYBRID
